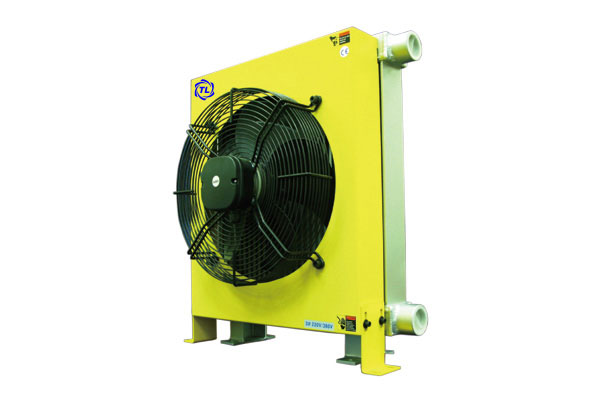

TL4-48
Product Feature
Flow (L/min) | Cooling Capacity (Kcal/hr) | Max. Operating Pressure (kg/cm2) | Voltage (V, ±10%) | Frequency (Hz) | Electric Current (A) | Power (Watt) | Rotation Rate (RPM) | Air Capacity (m3/hr) | Protection (IP) | Noise (dB(A)) | Approal | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
250 | 28000 | 20 | 220 | 50 / 60 | 0.91 / 1.0 | 145 / 250 | 1380 / 1550 | 4000 / 4800 | 54 | 62 / 64 | CE | 29.4 |
380 | 0.50 / 0.53 |

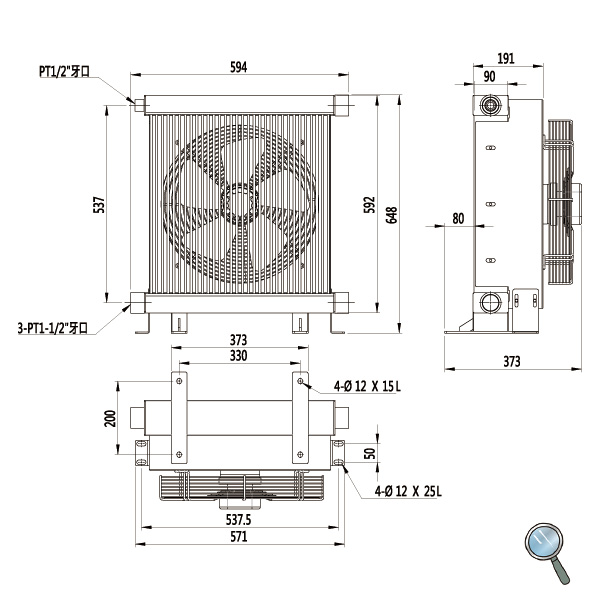

Product Specifications
